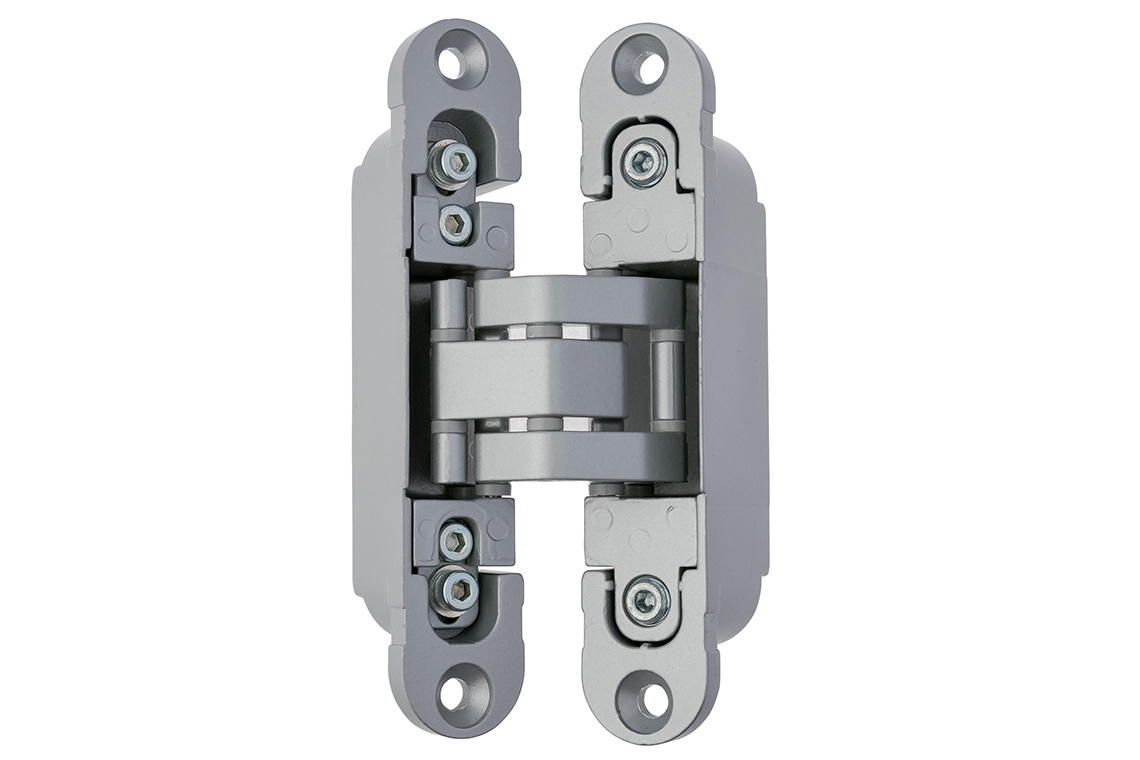

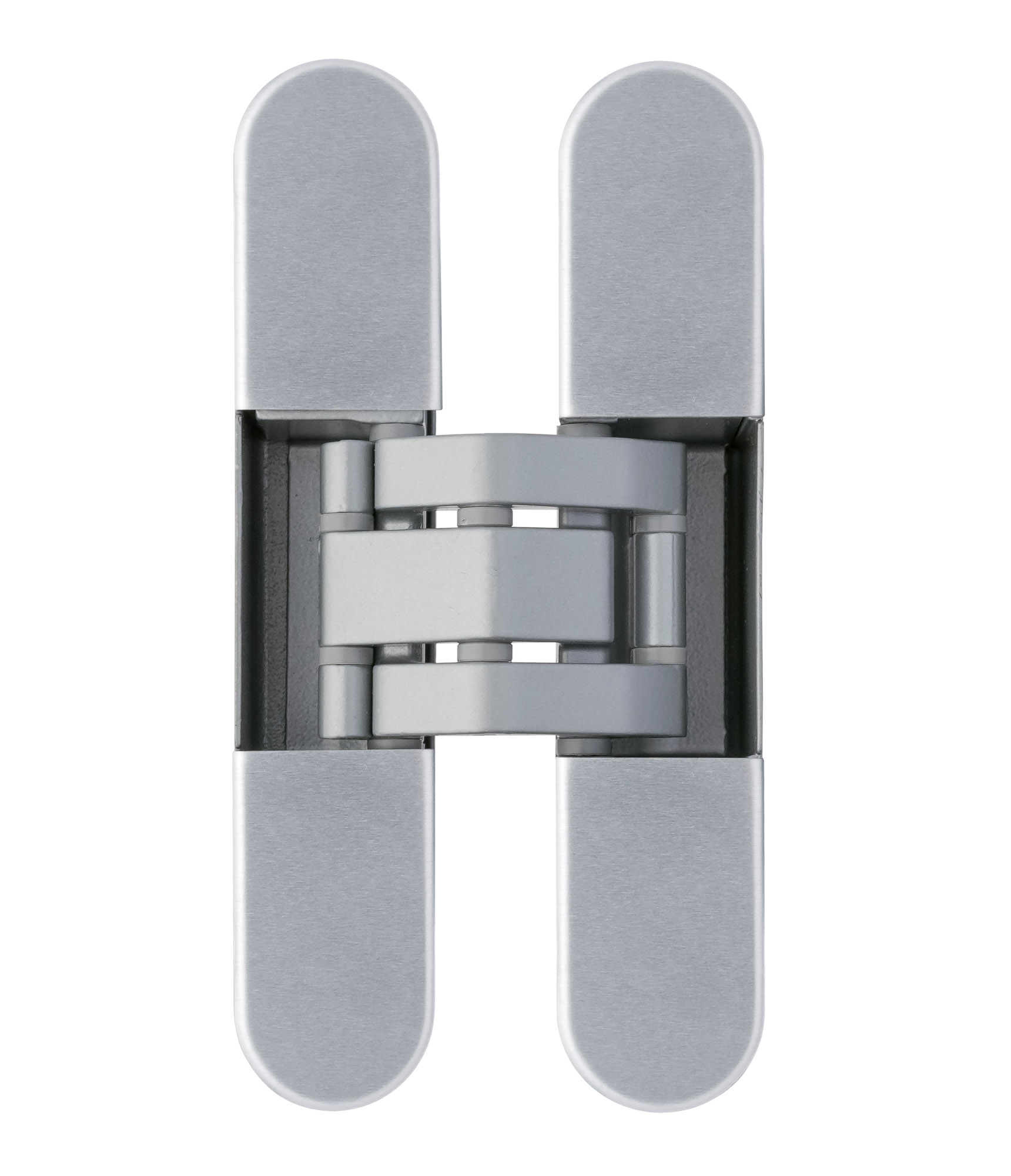

OTLAV IN230

- Concealed / 3D Adjustment
- Maintenance-Free Technology
- Load Capacity 132 lb. (2Hinges)
- 30 Minute Fireproof

SPECIFICATIONS
IN230 Brochure

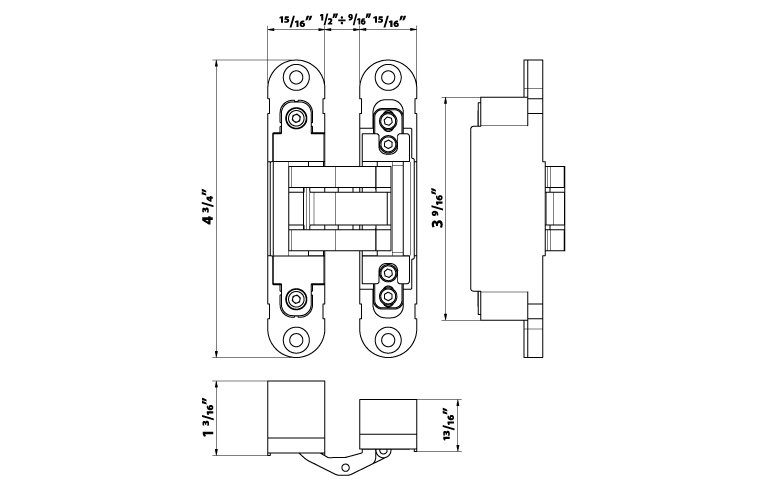

Technical Drawing
Technical Sheet
High Reslution Image
Load Capacity Table

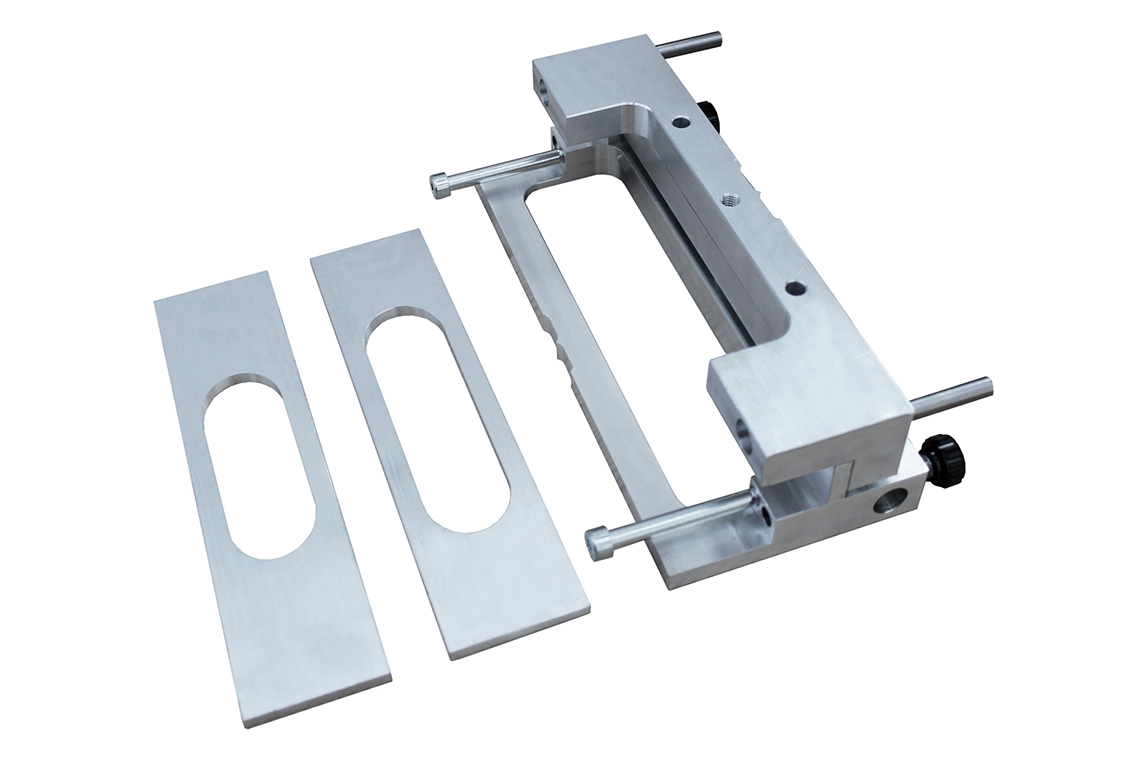

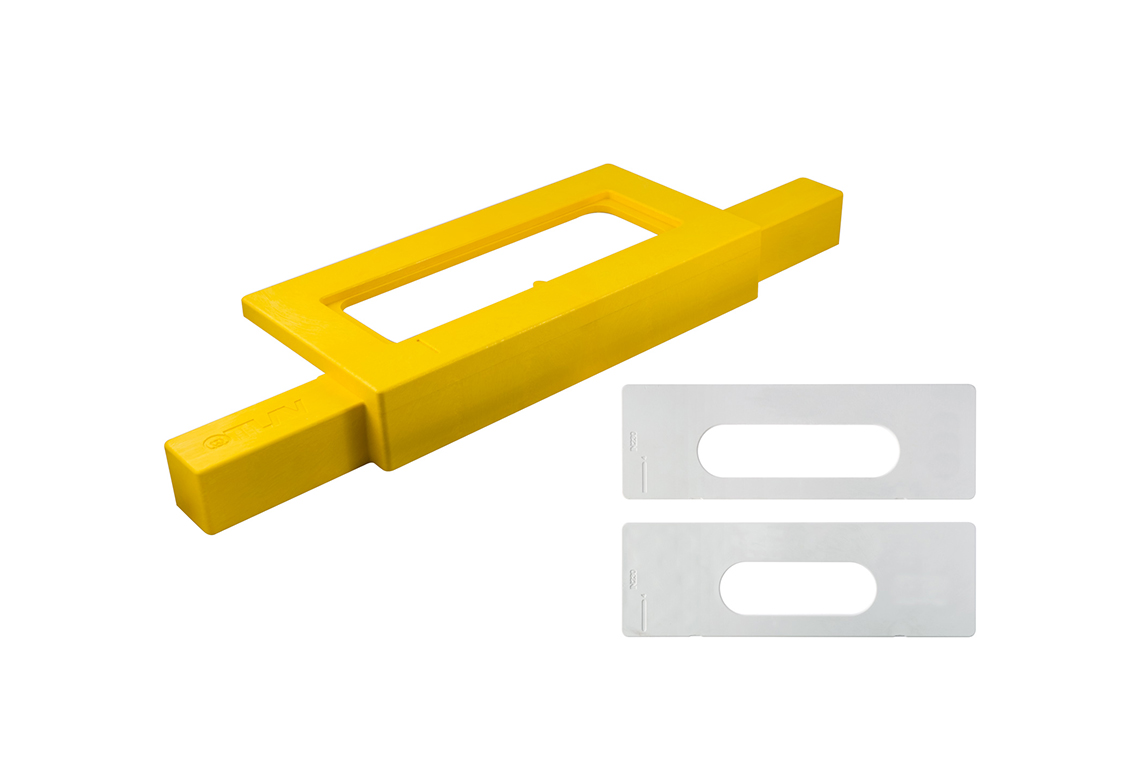

How to use JIG

Sanatized Silver
Sanatized Silver
Sanatized Nickel Plated
Sanatized Nickel Plated
Matte Black Plastified
Matte Black Plastified
Matte White Plastified
Matte White Plastified
Bronze Plated
Bronze Plated
Zinc Plated<
Zinc Plated
Polished Gold
Polished Gold
IN230
IN230
IN230
IN230
IN230

• The hinge is suitable to be installed on doors and frames in wood and aluminium
• The hinge can be fitted with door closing devices.
• CE certified
• Fireproof certified 30’ - UNI-EN 1634-2
• Material of hinge: ZAMAK.

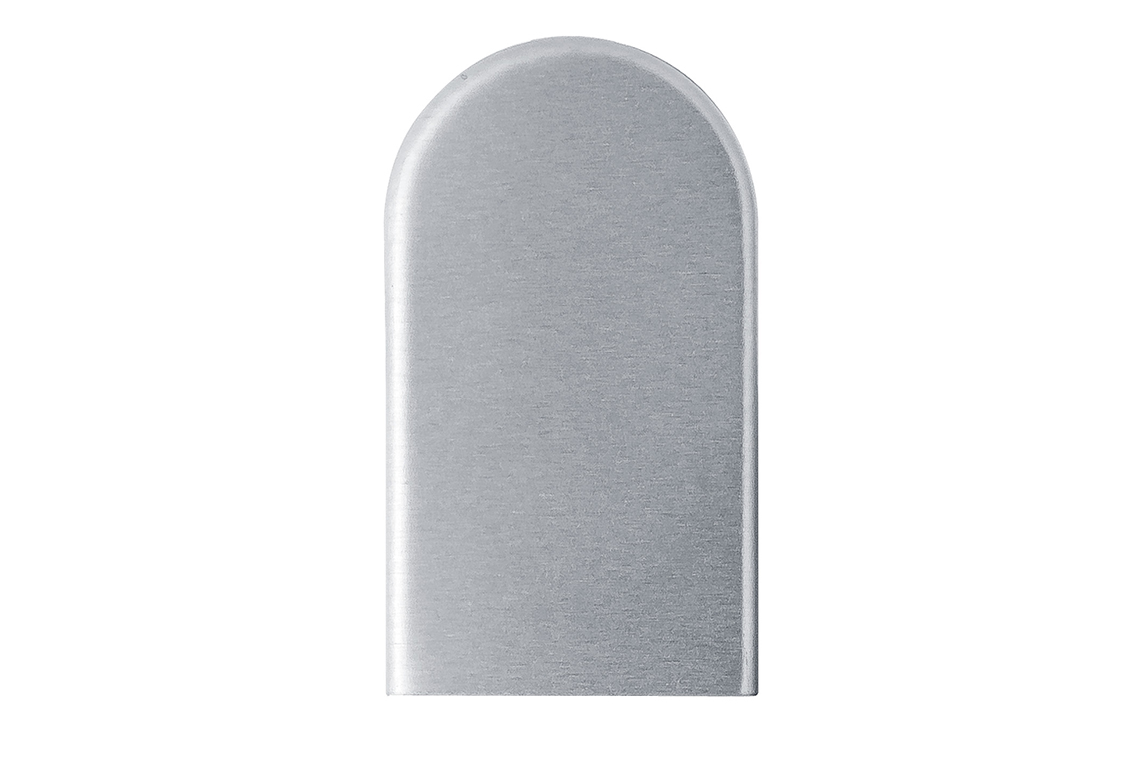

• Aluminum caps available to conceal the screws.
• The hinge can be fitted right and left.
• Movement on 7 junction fulcrums equipped with bearing in plastic HT with high resistance and long life.
• Equipped with 3-way adjustments that can be settled by means of just one 3 mm hex-spanner.
• Compatible with millings of IN235 and IN232 hinges.
CE Fire Rating
